The new Edison fixture (LED Parking Lot lights | Area Lights | Street Lights) is an exceptional mixture of value and performance. The product range has been upgraded to reach very high efficacy up to 160 lm/w and cover lumen packages between 9,000 – 48,000 lumens. The range includes 480V high voltage and various sensor versions, such as photocell and motion sensor for further increasing the energy savings.

INSTALLATION INSTRUCTION

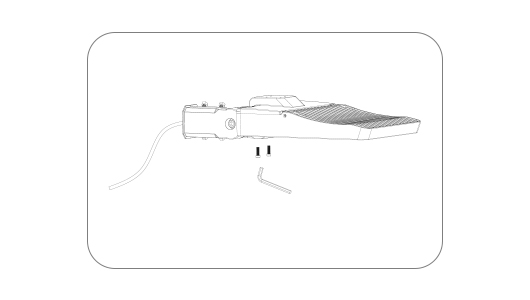

1:Slip fitter mounting

.Loose the M12 screw from the slip fitter bracket.	Bring in the power line through the front part of the slip fitter bracket, then install the bracket part onto the lamp , and tighten the two M6 screws.	3.Pass the lamp input line through the back part of the slip fitter bracket, and then tighten the M12 screws.
4.Connect to power supply AC 100-277V.	5.Install the hole lamp on the pole and tighten four M8 screws.

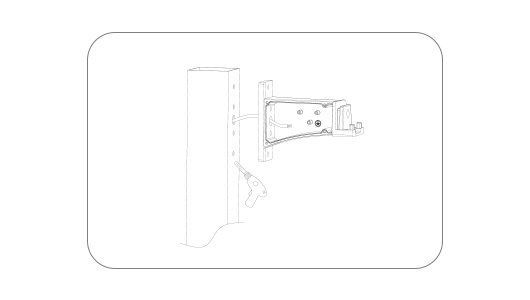

2:Arm mounting for square pole

1.emove the screws from the square mounting arm and move the cover plate.	2.Drill holes in the square pole corresponding to the holes on the mounting arm, at the position you want to install the fixture, then bring in the electric supply line through the middle hole into the mounting arm.
3.Put the bracket reinforcement board in the lamp square pole and fix the bracket on the lamp pole through tightening four M8 screws.	4.Bring in the power line through the hole into the arm and fix the lamp on the mounting arm.
5.Tighten 2 M6 screws and then connect the power supply AC 100-277V.	6.Close the arm cover plate through locking 4 M4 screws.

4:Trunnion mounting

1. Drill two holes in the wall corresponding to the holes in the mounting bracket, at the position you want to install the fixture.	2. Install expansion screws.	3.Fix the bracket tightly on the installation parts in the wall.
5.Lock two M6 screws tightly and connect the power supply AC 100-277V.	4.Connect the power line and fix lamp on the bracket.

AREA OF APPLICATION
Parking lots and streets;Outdoor basketball court and tennis court;Badminton court and football field;The school playground and stadium;Walkways and building grounds;
