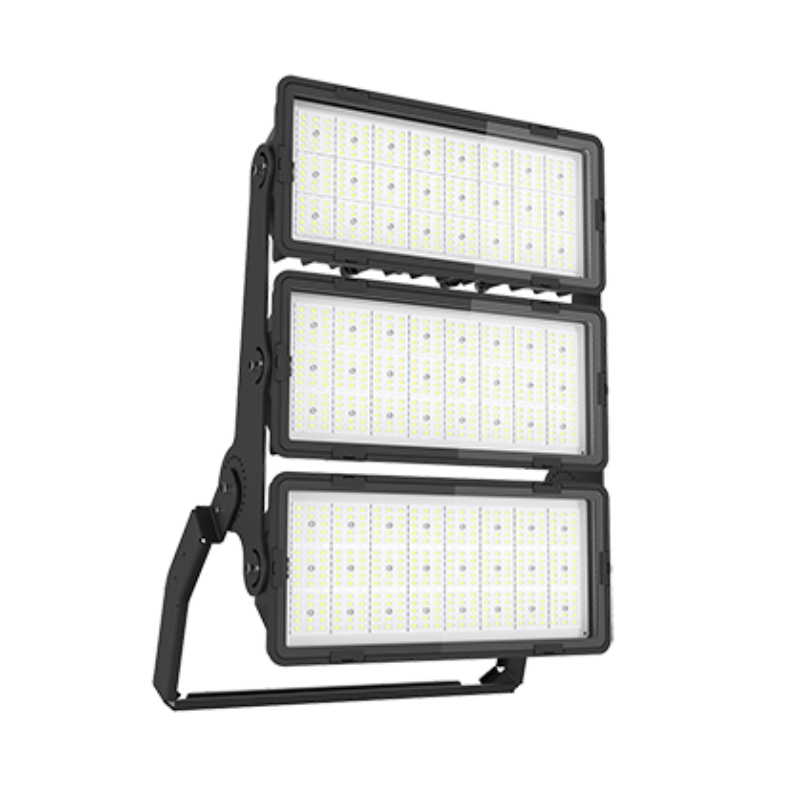

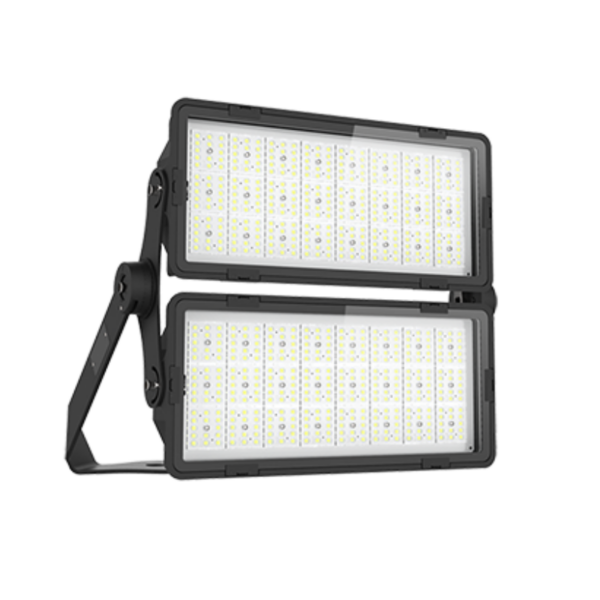

China’s powerful brandHonor T35 Sports High Mast Light
1. High lumens efficiency available up to 150 lm/w
2. High luminous flux up to 150000 lumens
3. 15°/ 30°/ 60°/ 90°/ 90*120°/ 40*130°/ TYPE2/ TYPE3/ TYPE4 Beam angles available
4. 5 years warranty
Share with friends
Product Description
| Model No | T35-400W | T35-500W | T35-650W | T35-750W | T35-1000W | |

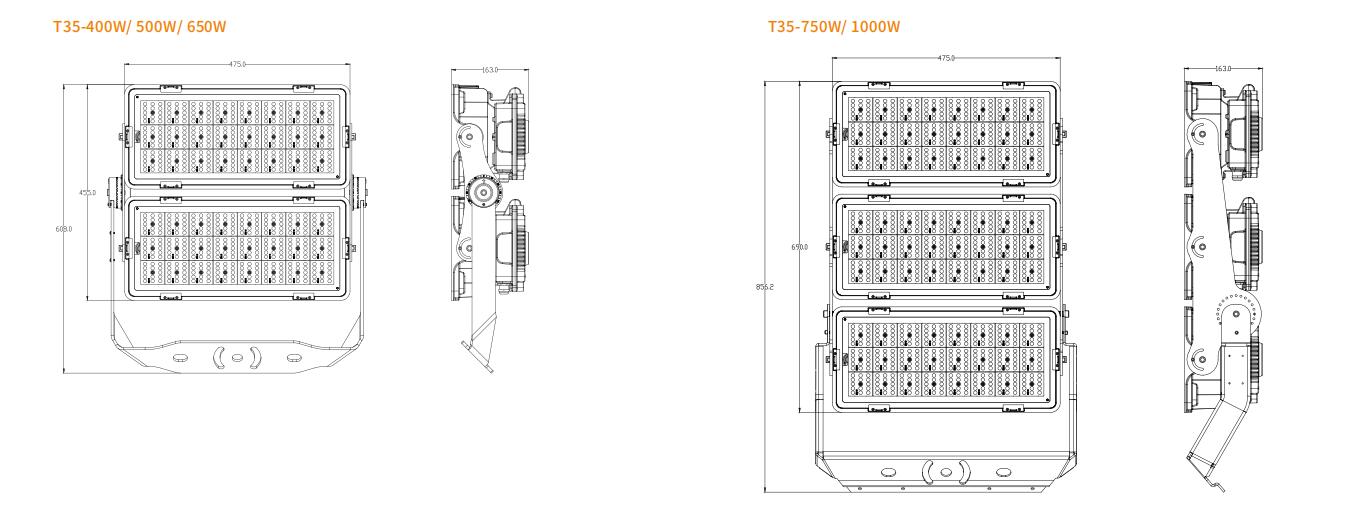

| Product Dimension | 608*475*163(mm) | 608*475*163(mm) | 608*475*163(mm) | 856*475*163(mm) | 856*475*163(mm) | |
| Efficiency | 140±10lm/w (15°) | |||||
| Luminous Flux (±10%) | 56000±4000lm | 70000±5000lm | 91000±6500lm | 105000±7500lm | 140000±10000lm | |
| High Efficiency | 150±10lm/W (30°\60°\90°\90*120°\40*130°\TYPE2\TYPE3\TYPE4) | |||||
| Luminous Flux (±10%) | 60000±4000lm | 75000±5000lm | 97500±6500lm | 112500±7500lm | 150000±10000lm | |
| CCT | 3000K;4000K;5000K;6000K | |||||
| Ingress Protection | IP65 | |||||
| Color Rendering Index | Ra>70 | |||||
| Beam Angle | 15°\30°\60°\90°\90*120°\40*130°\TYPE2\TYPE3\TYPE4 | |||||
| Driver Brand | TOMCARLINE (MW or other brand optional) | |||||
| Input Voltage | AC100-277V | |||||
| Power Factor | >0.9 | |||||
| Frequency | 47-63HZ | |||||
| Driver Type | Constant Current (CC) | |||||
| Luminaire Net Weight | 20.5kg | 20.5kg | 20.5kg | 31kg | 31kg | |
| Packing Information | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | 1PCS/CTN | |
| Export Carton Size | 67*58.5*22(cm) | 67*58.5*22(cm) | 67*58.5*22(cm) | 91.5*58.5*24(cm) | 91.5*58.5*24(cm) | |
| GrossWeight | 22.5kg | 22.5kg | 22.5kg | 35.2kg | 35.2kg | |
| Material | Housing | Aluminum Alloy | ||||
| Optics | Optical lens+ Tempered Glass | |||||
| Finish | Powder Coating | |||||
| Fixture Color | Black | |||||
| Mounting Option | Bracket installation | |||||
| Ambient Temperature | -30~+45℃ | |||||
| Life Time | 50.000 hours | |||||
| Warranty | 5 Years | |||||
| Dimmable | 1-10V dimmable, DALI dimmable | |||||
| Optional Accessories | 1-10V/ DALI driver | |||||
| 20KV SPD | ||||||
| Wire guard | ||||||
| Aluminum shading cover | ||||||
| Laser Aiming Device | ||||||
| Safety rope (1m length) | ||||||
 |
 |
 |
| Clear PC cover(Standard) / Milky cover optional | Safety rope (0.5m length) | 12V Plug-and- play PIR sensor |
 |
 |
 |
| 12V Plug-and- play PIR sensor | Remote controller for motion sensor and PIR sensor | 12V Plug-and- play microwave motion sensor |
