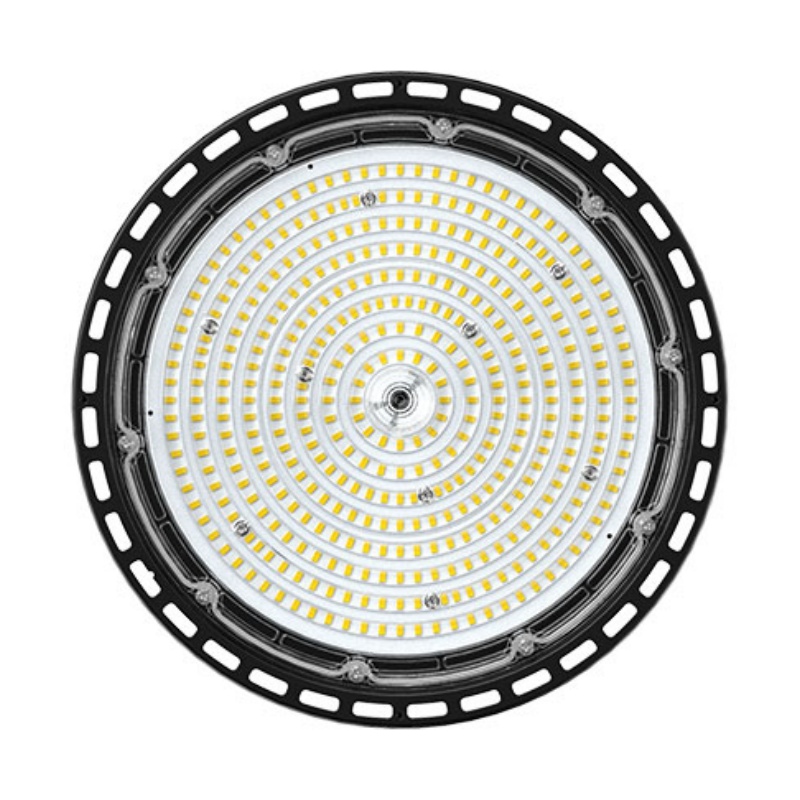

HC-HB39-C Classic HighBay Light
- Efficiency up to 200lm/lightweight design,
- Save shipping costs Larger PCB board,
- Excellent heat dissipation performance Various installation methods,
- Flexible and convenient IP66 protection level
- Can be used in -40’C~+50℃C environment
- 5-year warranty
Share with friends
Product Description
| Model No. | HB39-C-60W | HB39-C-100W | HB39-C-150W | HB39-C-200W | |
| Power | 60W | 100W | 150W | 200W | |
| Product Dimension | φ220*78(mm) | φ265*86(mm) | φ300*86(mm) | φ330*86(mm) | |
| Efficiency | 155±10%lm/W (Ra>80) | ||||
| Luminous Flux (±10%) | 9300±10%lm | 15500±10%lm | 23200±10%lm | 31000±10%lm | |
| Efficiency PLUS | 180±10%lm/W (Ra>80) | ||||
| Luminous Flux (±10%) | 10800±10%lm | 18000±10%lm | 27000±10%lm | 36000±10%lm | |
| Efficiency PLUS+ | 200±10%lm/W (Ra>70) | ||||
| Luminous Flux (±10%) | 12000±10%lm | 20000±10%lm | 30000±10%lm | 40000±10%lm | |
| Beam Angle | 60°/ 90°/ 120° | 60°/ 90° | |||
| CCT | 3000K;4000K;5000K;5700K;6500K | ||||
| Ingress Protection | IP66 | ||||
| Color Rendering Index | Ra>70/80 | ||||
| Driver Brand | TOMCARLINE | ||||
| Input Voltage | AC120-277V | AC200-240V | AC200-240V | AC200-240V | |
| Power Factor | 0.95 | ||||
| Frequency | 47-63HZ | ||||
| Driver Type | Constant Current (CC) | ||||
| Luminaire Net Weight | 1.2kg | 1.9kg | 2.3kg | 2.8kg | |
| Packing Information | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | |
| Export Carton Size | 28*27*30CM | 33*28*35CM | 37*28*39CM | 40*28*42CM | |
| Gross Weight | 3.3kg | 4.8kg | 5.8kg | 6.8kg | |
| Material | Housing | Aluminum Alloy | |||
| Optics | PC lens | ||||
| Finish | Powder Coating | ||||
| Fixture Color | Black | ||||
| Mounting Option | Ring mounting/ Hook Hanging/ Ceiling Mounting/ Pendant 1/2″NPT installation | ||||
| Storage temperature range | -30~+70℃ | ||||
| Storage humidity range | 85% max. | ||||
| Operating temperature range | -40℃~+50℃ | ||||
| Operating humidity range | 85% max. | ||||
| Life Time | 50.000 hours | ||||
| Warranty | 5 Years | ||||
| Dimmable | 1-10V dimmable | ||||
| Optional Accessories | 0-10V dimmable | ||||
| AC120-277V | |||||
| Hook Hanging | |||||
| ±45° Adjustable brackets | |||||
| PC reflector | |||||
| Aluminum reflector | |||||
| Safety rope (0.5m length) | |||||
