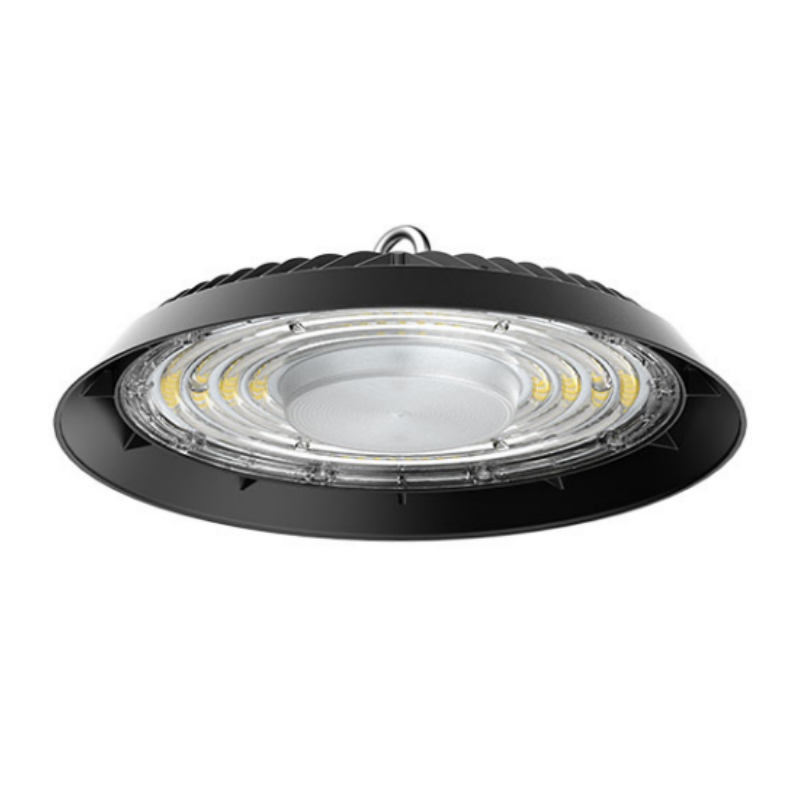

HB51 DOB Highbay Light Dimmable high quality warehouse
120-130lm/W
IP66 protection grade
PF>0.95
Lifetime up to 50,000 hours
Surge protection up to 3KV/6KV

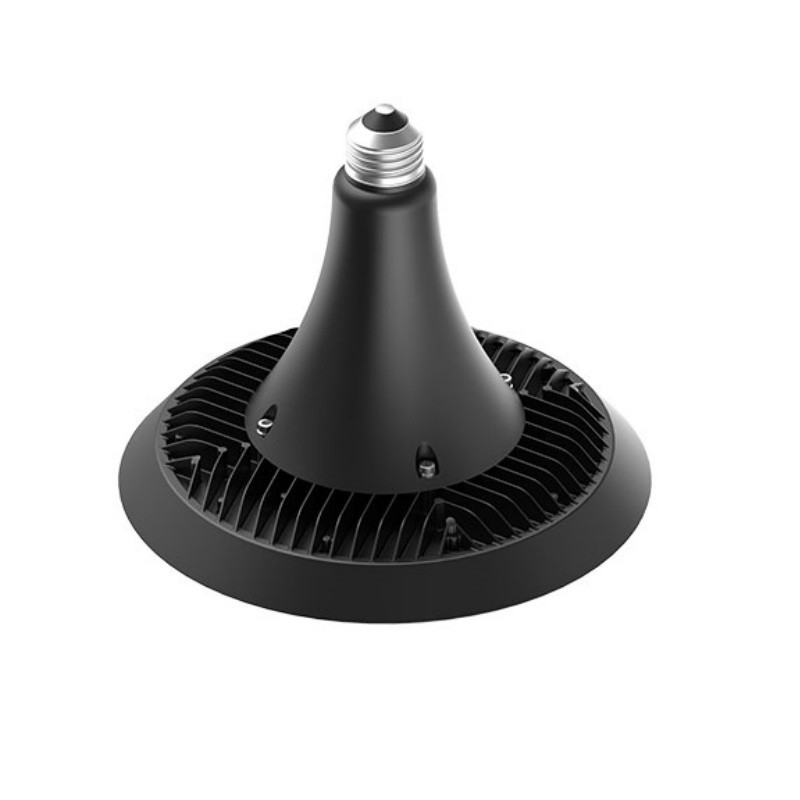

E40 screw base optional, suitable for one-to-one replacement of fluorescentlamps
Share with friends
Product Description
| Model No. | HB51-100W | HB51-150W | HB51-200W | |
| Product Dimension | φ239*50.5(mm) | φ279*52(mm) | φ319*53(mm) | |
| Efficiency | 120±10lm/W | |||
| Luminous Flux | 12000±1000lm | 18000±1500lm | 24000±2000lm | |
| CCT | 3000K;4000K;5000K;5700K;6500K | |||
| Ingress Protection | IP66 | |||
| Color Rendering Index | Ra>80 | |||
| Beam Angle | 60°/90°/ 120° | |||
| Input Voltage | AC200-240V | |||
| Power Factor | 0.95 | |||
| Frequency | 47-63HZ | |||
| Luminaire Net Weight | 0.8kg | 1.2kg | 1.6kg | |
| Packing Information | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | |
| Export Carton Size | 29*18*32CM | 33*18*36CM | 37*18*40CM | |
| Gross Weight | 2.6kg | 3.3kg | 4.2kg | |
| Material | Housing | Aluminum Alloy | ||
| Optics | PC lens | |||
| Finish | Powder Coating | |||
| Fixture Color | Black/White/Silver | |||

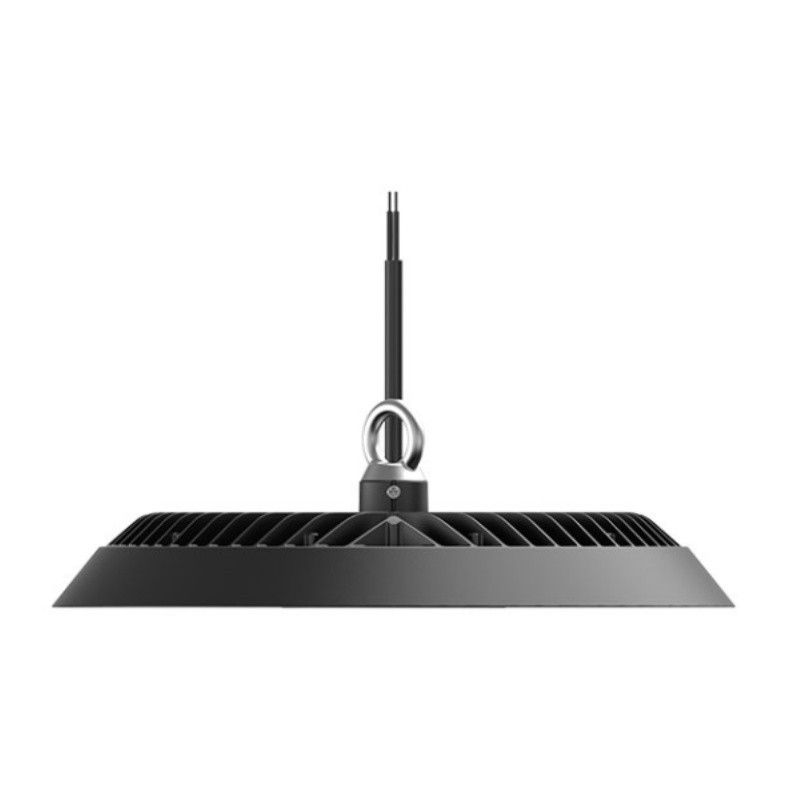

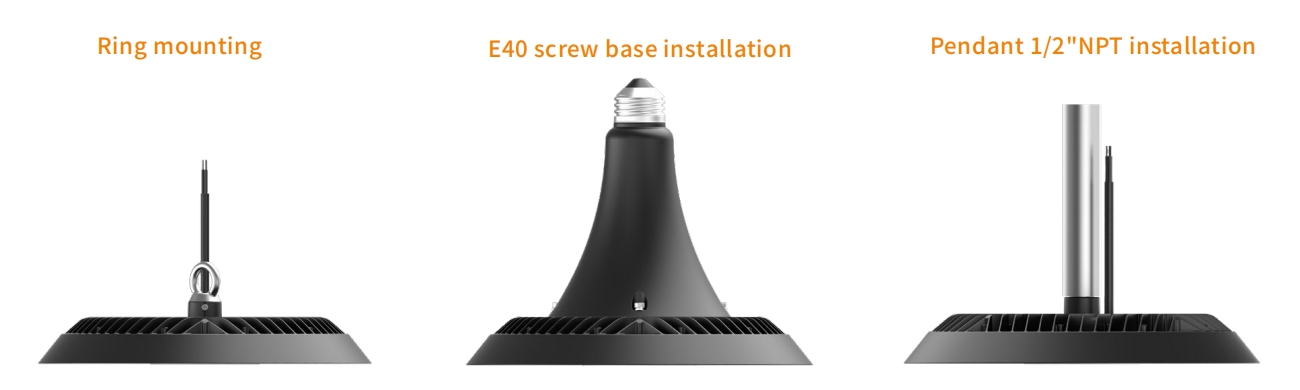

| Mounting Option | Hook hanging Screw base installation Pendant 1/2″NPT installation | |||
| Storage temperature range | -30℃-+70℃ | |||
| Storage humidity range | 85% max. | |||
| Operating temperature range | -30~+50℃ | |||
| Operating humidity range | 85% max. | |||
| Life Time | 30.000 hours | |||
| Warranty | 3 Years | |||
| Optional Accessories | CRI > 90 | |||
| E40 Screw base | ||||
