1. Robust and durable aluminum housing, provides good heat dissipation.
2. Smooth design, dust-proof.(150W with cooling fin design)
3. High quality 3030 chips provide 150lm/W high efficiency.
4. High quality PC lens with 140°x60° Beam angle.
5. Industrial rated silicon gasket for an IP class of IP66.

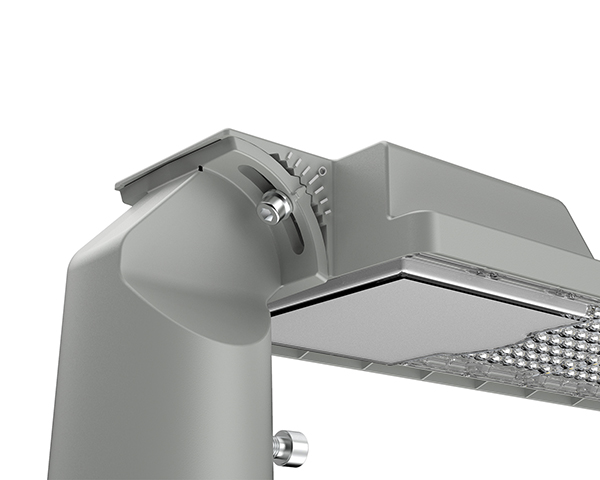

6. Slip-Fitter for 60/42mm poles
INQUIRE NOW
SPECIFICATIONS
| Model No. | SLA101-20W | SLA101-30W | SLA101-50W | SLA101-60W | SLA101-80W | SLA101-100W | SLA101-120W | SLA101-150W | |
| Power | 20W | 30W | 50W | 60W | 80W | 100W | 120W | 150W | |

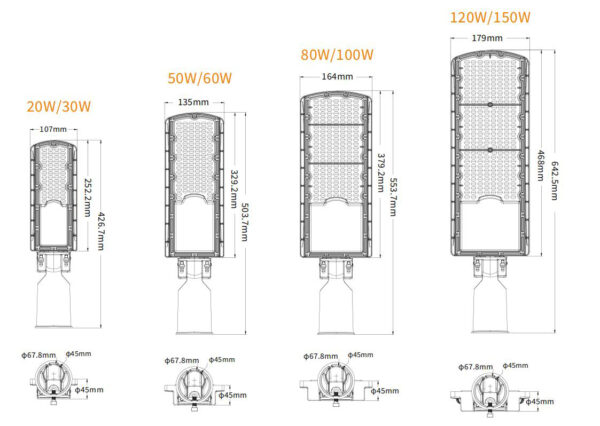

| Product Dimension | 426.7*107*45(mm) | 426.7*107*45(mm) | 503.7*135*45(mm) | 503.7*135*45(mm) | 553.7*164*45(mm) | 553.7*164*45(mm) | 642.5*179*45(mm) | 642.5*179*45(mm) | |
| Efficiency | 150±10lm/W | ||||||||
| Luminous Flux (±10%) | 3000±200lm | 4500±300lm | 7500±500lm | 9000±600lm | 12000±800lm | 15000±1000lm | 18000±1200lm | 22500±1500lm | |
| CCT | 3000K;4000K;5000K;6500K | ||||||||
| Ingress Protection | IP66 | ||||||||
| Color Rendering Index | Ra>70 | ||||||||
| Beam Angle | 140°x60° | ||||||||
| Driver Brand | TOMCARLINE | ||||||||
| Input Voltage | AC120-277V | ||||||||
| Power Factor | >0.95 | ||||||||
| Frequency | 47-63HZ | ||||||||
| Driver Type | Constant Current (CC) | ||||||||
| Luminaire Net Weight | 1.09kg | 1.09kg | 1.27kg | 1.27kg | 1.92kg | 1.92kg | 2.55kg | 2.55kg | |
| Packing Information | 6PCS/CTN | 6PCS/CTN | 6PCS/CTN | 6PCS/CTN | 4PCS/CTN | 4PCS/CTN | 4PCS/CTN | 4PCS/CTN | |
| Export Carton Size | 47.5*42*27(cm) | 47.5*42*27(cm) | 55.5*49.5*27(cm) | 55.5*49.5*27(cm) | 60.5*39.5*27(cm) | 60.5*39.5*27(cm) | 69.3*42.5*27(cm) | 69.3*42.5*27(cm) | |
| Gross Weight | 8.3kg | 8.3kg | 9.96kg | 9.96kg | 9.33kg | 9.33kg | 12.2kg | 12.2kg | |
| Material | Housing | Aluminum alloy | |||||||
| Optics | PC Lens | ||||||||
| Finish | Powder coating | ||||||||
| Fixture Color | Silvery grey | ||||||||
| Mounting Option | Vertical/ Horizontal Installation | ||||||||
| Ambient Temperature | -30℃~+45℃ | ||||||||
| Storage humidity range | 85% max. | ||||||||
| Operating humidity range | 85% max. | ||||||||
| Life Time | 30.000 hours | ||||||||
| Warranty | 3 Years | ||||||||
| Dimmable | 1-10V dimmable | ||||||||
 |  |  |  |  |
